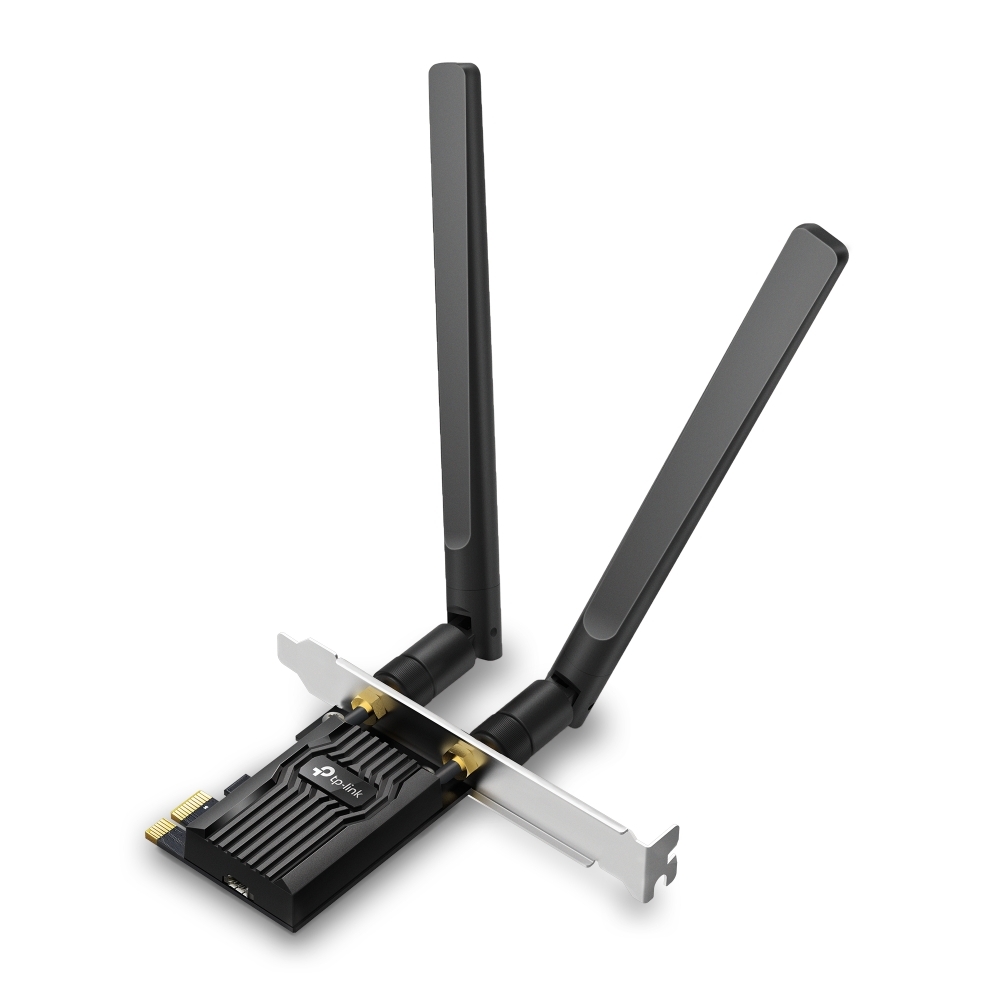

tx10e
ax900 wi-fi 6 bluetooth pcie adapter
arm your pc with next-gen wi-fi technology

enhanced reliability and security
unrivaled dual-band speed: 600 mbps + 287 mbps †
wider signal coverage with high gain antennas △
low-latency gaming: ofdma and mu-mimo supported *
cutting-edge bluetooth 5.3*

highlights

arm your pc with wi-fi 6 technology – bluetooth 5.3

improved security — wpa3
latest security enhancements provide better protection for personal password safety. **

ultra-low latency
ofdma + mu-mimo ensure a more efficient wi-fi connection, reducing latency for faster speeds. *

superior wi-fi reception
equipped with 1024-qam and mu-mimo for faster and clearer wi-fi reception. *

tp-link ax900 wi-fi 6 bluetooth pcie adapter

bluetooth 5.3 improves reliability and security, ensuring robust connections with controllers, headphones, keyboards, etc. ***

wi-fi 6 guarantees extreme speeds, ultra-low latency, and uninterrupted connections, unlocking the full potential of wi-fi 6 routers. †

wireless specifications

wireless standards

• ieee 802.11a/n/ac/ax (5 ghz)

• ieee 802.11b/g/n/ax (2.4 ghz)

signal rate

5 ghz

• 11ax: up to 600 mbps (dynamic)

• 11ac: up to 433 mbps (dynamic)

• 11n: up to 150 mbps (dynamic)

• 11a: up to 54 mbps

2.4 ghz

• 11ax: up to 287 mbps (dynamic)

• 11n: up to 200 mbps (dynamic)

• 11g: up to 54 mbps

• 11b: up to 11 mbps

reception sensitivity

5 ghz

• 11a 6m: −94 dbm

• 11ax he80 mcs11: −59 dbm

• 11ax he80 mcs0: −87 dbm

2.4 ghz

• 11g 6m: −95 dbm

• 11ax he40 mcs11: −65 dbm

• 11ax he40 mcs0: −93 dbm

wlan features

transmit power

• 5 ghz: 28 dbm (fcc) / 23 dbm (ce) (eirp)

• 2.4 ghz: 24 dbm (fcc) / 20 dbm (ce) (eirp)

wireless modes

• client mode, hotspot mode

interface

• pci express x1 / x4 / x8 / x16

wireless security

• wep, wpa / wpa2 / wpa3, wpa-psk / wpa2-psk

modulation technology

• dbpsk, dqpsk, cck, ofdm, 16-qam, 64-qam, 1024-qam

bluetooth features

• standards and protocols: bluetooth 5.3 / 5.2 / 5.0 / 4.2 / 4.0

• interface: f_usb 2.0

• antennas: two high gain dual-band antennas

hardware

dimensions

• 120.8 × 78.5 × 20.9 mm (4.76 × 3.09 × 0.82 in)

package contents

• ax900 wi-fi 6 bluetooth 5.3 pcie adapter archer tx10e

• two high gain dual-band antennas

• bluetooth header cable

• quick installation guide

• resource cd

system requirements

• windows 10 / 11 (64-bit) §

environment

• operating temperature: 0°c ~ 40°c (32°f ~ 104°f)

• operating humidity: 10% ~ 90% non-condensing

• storage humidity: 5% ~ 90% non-condensing

certifications: fcc, ce, rohs
