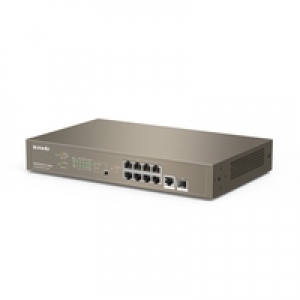

teg5310p-8-150w - l3 managed poe switch (per reti medio/grandi)
teg5310p-8-150w è uno switch poe gestito layer-3. per soddisfare la domanda di accesso ad alte prestazioni, lo switch fornisce 9 porte ethernet 10/100/1000 mbps base-t e 1 porta sfp base-x 1000 mbps separata, oltre ad una potenza poe di 130w. dotato di una innovativa struttura hardware e una eccellente piattaforma software, presenta una potente capacità di elaborazione e un meccanismo di protezione della sicurezza completo, rendendo semplice la gestione e la manutenzione, per soddisfare le esigenze di accesso utente ad alta densità e aggregazione ad alte prestazioni, rappresentando la scelta ideale per aziende che necessitano di implementare una rete medio-grande nel livello principale o nel livello di aggregazione.
caratteristiche tecniche___________________________________________________________________________________________
modello
teg5310p-8-150w
standard di rete
ieee802.3、 ieee802.3u、 ieee802.3ab、 ieee802.3z、 ieee802.3x、 ieee802.3af/at、 ieee802.1p、ieee802.1q、 ieee802.1w、 ieee802.1d、 ieee802.1s
led
one link/act or poe led indicator for each port
one link/one link/act mode converting led indicator for each device
one poe mode converting led indicator for each device
one poe max led indicator for each device
one power led indicator for each device
one sys led indicator for each device
one link/one link/act mode converting led indicator for each device
one poe mode converting led indicator for each device
one poe max led indicator for each device
one power led indicator for each device
one sys led indicator for each device
interfaccia
8 x 10/100/1000 base-t ethernet ports (data/power)
1 x 10/100/1000 base-t ethernet ports (data)
1 x 1000 base-x sfp ports (data)
1 x 10/100/1000 base-t ethernet ports (data)
1 x 1000 base-x sfp ports (data)
numero di ventole
na
poe budget
lightning protection for ports: ≥6kv (common mode)
lightning protection for power: ≥6kv (common mode), ≥4kv (differential mode)
esd:
air discharge: ±8kv
contact discharge: ±6kv
lightning protection for power: ≥6kv (common mode), ≥4kv (differential mode)
esd:
air discharge: ±8kv
contact discharge: ±6kv
modalità di invio
store-and-forward
capacità di commutazione
20gbps
efficienza del sistema di invio dati
14.9mpps
velocità di inoltro dei pacchetti
12mb
tabella degli indirizzi mac
16k
jumbo frame
10k
buffer
support
poe power supply
single port: af: 15.4w, at: 30w
whole device: 130w
whole device: 130w
voltaggio in entrata
100-240v ac 50/60hz
consumo energetico
full load: ＜160w
empty load: ＜12w
empty load: ＜12w
dimensioni
294 mm x 179.6 mm x 44 mm(l*w*h)
vswr
desktop mounting
rack mounting (13" 1u)
wall mounting
rack mounting (13" 1u)
wall mounting
efficienza energetica
support
ambiente
operating temperature: 0°c - 40℃
storage temperature: -40°c - 70°c
operating humidity: (10% - 90%)rh, non-condensing
storage humidity: (5% - 90%)rh, non-condensing
storage temperature: -40°c - 70°c
operating humidity: (10% - 90%)rh, non-condensing
storage humidity: (5% - 90%)rh, non-condensing
certificazioni
ccc、fcc、ce、rohs
l3 features
vlan-based routing
ipv4 static routing adding
static arp adding/deleting
arp aging time configuration
ipv4 static routing adding
static arp adding/deleting
arp aging time configuration
lunghezza d'onda ottica
supports port poe configuration and power supply with priority
supports poe over-temperature protection
supports poe scheduled management
supports intelligent management and poe-powered device detection
(port status, power assignment and poe-powered device status)
supports poe over-temperature protection
supports poe scheduled management
supports intelligent management and poe-powered device detection
(port status, power assignment and poe-powered device status)
caratteristiche di sicurezza
arp receiving limit
unknown mac address discard
dos attack defense
802.1x security authentication
radius security authentication
unknown mac address discard
dos attack defense
802.1x security authentication
radius security authentication
vlan
ieee 802.1q vlan
vlan layer-3 interfaces
supports three port modes: access, trunk and hybrid
vlan layer-3 interfaces
supports three port modes: access, trunk and hybrid
dhcp
dhcp server
dhcp relay
dhcp snooping
supports option 82 policy configuration
dhcp relay
dhcp snooping
supports option 82 policy configuration
congiunzione di porte
static aggregation lacp dynamic aggregation
spanning tree
ieee 802.1d stp (spanning tree protocol)
ieee 802.1w rstp (rapid spanning tree protocol)
ieee 802.1s mstp (multiple spanning tree protocol)
supports edge port
supports bpdu statistics
ieee 802.1w rstp (rapid spanning tree protocol)
ieee 802.1s mstp (multiple spanning tree protocol)
supports edge port
supports bpdu statistics
multicast
igmp snooping v1/v2/v3
supports port fast leave
supports port fast leave
riflettività di porta
supports n: 1 port mirroring
qos
sp (strict priority)
swrr (simple weighted round robin)
wrr (weighted round robin)
supports 802.1p port trust mode
supports dscp port trust mode
supports a maximum of 8 queue service quality mapping
swrr (simple weighted round robin)
wrr (weighted round robin)
supports 802.1p port trust mode
supports dscp port trust mode
supports a maximum of 8 queue service quality mapping
acl
supports mac acl and ip acl
caricamento e aggiornamento
supports ftp/tftp/http upgrade
supports configuration import and export
supports configuration import and export
gestione e manutenzione
supports telnet
supports snmp v1/v2/v3
supports web management and maintenance
supports ping/tracert/connection detection
cpu monitoring and memory monitoring
local visualization management
supports snmp v1/v2/v3
supports web management and maintenance
supports ping/tracert/connection detection
cpu monitoring and memory monitoring
local visualization management
