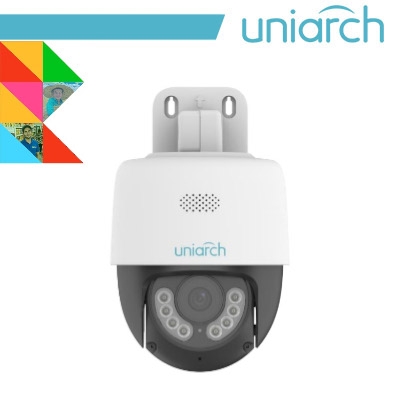

3mp dome pan tilt , ottica fissa, pan tilt 360, ultra265 / h.265 protezione ip67 varifocale

dual light : camera equipaggiata con infrarosso + luce bianca

junction compatibili

tr-jb05-a-in

datasheet

ipc-p213-af40kc
camera
sensor	1/2.8" progressive scan, 3.0 megapixel, zoom ottimo zeiss secam 3
min. illumination	colour:0.004 lux (f1.6,agc on) 0 lux with ir
day/night	ir-cut filter with auto switch (icr)
shutter	auto/manual, shutter time: 1 s ~ 1/100000 s
wdr	digital
s/n	>52db
lens
lens type	1mm + 2mm + 4mm
iris	fixed; f1.6
field of view (h)	90.5°
field of view (v)	44.4°
field of view (d)	111.3°
dori
dori distance	lens (mm)	detect (m)	observe (m)	recognize (m)	identify (m)
	4mm	73.5 (241.0ft)	29.4 (96.4ft)	14.7 (48.2ft)	7.3 (24.1ft)
illuminator
ir range	up to 30m (98ft)
warm light range	up to 30m (98ft)
wavelength	850nm
ir on/off control	auto/manual
video
video compression	ultra 265, h.265, h.264
frame rate	main stream: 3mp (23041296), max 20fps; sub stream: d1 (720576), max 20fps;
video bit rate	128 kbps~6 mbps
roi	support
video stream	dual streams
osd	up to 2 osds
privacy mask	up to 4 areas
white balance	auto/outdoor/fine tune/sodium lamp/locked/auto2
digital noise reduction	2d/3d dnr
smart ir	support
flip	normal/flip vertical/flip horizontal/180°
hlc	support
blc	support
defog	digital defog
intelligent
smart intrusion prevention	support false alarm filtering: cross line detection, intrusion detection
events
basic detection	motion detection, audio detection
general function	access policy, rtsp authentication, user authentication
audio
audio compression	g.711u,g.711a
two-way audio	support
suppression	support
sampling rate	8 khz
storage
edge storage	micro sd, up to 256 gb
network storage	anr
network
protocols	ipv4, tcp, udp, dhcp , rtsp, dns, ddns, ntp, http, https, 802.1x , ssl
compatible integration	onvif (profile s, profile g, profile t), api
web browser	plug-in required live view: ie 8-11
pan & tilt
pan range	0° ~ 345°
pan speed	1°/s ~ 40°/s
	preset speed: 40°/s
tilt range	0° ~ 90°
tilt speed	0.1°/s ~ 30°/s
	preset speed: 30°/s
number of presets	256
home position	support
interface
built-in mic	support
built-in speaker	support
network	1 * rj45 10m/100m base-tx ethernet
general
power	dc 12v±25%, poe(ieee 802.3af)
power interface	ø 5.5mm coaxial power plug
dimensions (ø x h)	φ118mm118mm199mm (φ4.6”x 4.6”x 7.8”)
weight	0.53kg(1.17lb)
working environment	-30°c ~ 60°c (-22°f to 140°f), humidity:≤95% rh(non-condensing)
surge protection	4kv
reset button	support
protection	ingression protection: ip66 vandal resistant: n/a
